HDMI/SDI to NDI Wired Encoder – KILOVIEW

The Most Versatile and Cost-Effective Streaming Encoders

Category Tags , , , , , , , , , , , , , ,
Facebook
WhatsApp
Twitter
Email

Descripción

Professional & Affordable HD NDI Video Encoder

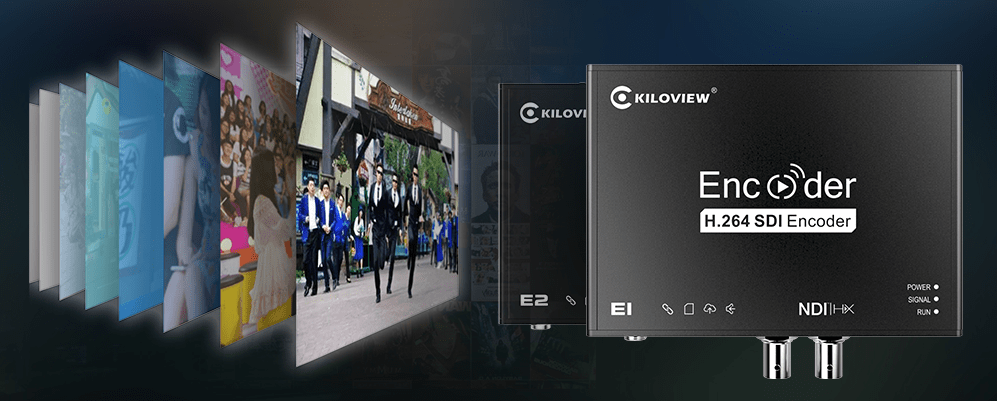

Kiloview E1/E2 NDI H.264 video encoder converts SDI or HDMI base-band video to various H.264 IP streams at the same time with SDI or HDMI loop for monitoring. The supported IP protocols includes NDI|HX/ RTSP/ RTMP/ RTMPS/ SRT/ HLS/TS-UDP/Onvif which can be used for low-latency professional live production, streaming, broadcasting, recording etc. across internet or over private network by broadcasters, churches, schools, hospitals, transportation hubs, enterprises, military etc..

E1 NDI: SDI in/loop
E2 NDI: HDMI in/loop

Why NDI?

The NDI protocol is a high-performance standard that enables anyone to use real-time, ultra-low-latency video on existing IP video networks.

NDI Webcam Input
Easily designate Kiloview NDI encoders as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, Teams and more using the free NDI® webcam input tool.

All Protocols All at the Same Time

It supports full range of protocols including NDI|HX/ RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif. That means live stream with RTMP/RTMPS, while live production with NDI|HX and remote production with SRT, all can be handled at the same time.

It supports ONVIF 1.1/2.0 for easy access to security protection system /NVR System.

Multi-Platform Live

Dual-stream output (main-stream and sub stream), each stream can be used to up to 8 platforms with same or different protocols, altogether it can simultaneously live stream to up to 16 platform. (Main stream resolution up to 1080p60Hz, sub stream resolution up to 720p 60Hz.)

Faster while better

With optimized algorithm, the encoding latency is <67ms. With adjustable bitrate from 64Kbps up to 40Mbps, better video quality is available, typically even at 1Mbps@720p, 1.5Mbps@1080p network, video quality is good enough.
icon-low-latencyEncoding delay ≤ 67ms
adjustable bitrate iconAdjustable bitrate 64kbps～40Mbps
low-bandwidth iconLow bandwidth 1.5Mbps@1080p

Let’s go Social

With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.

It’s a recorder with OSD

E1/E2 NDI can provide simultaneous recording while you are doing live streaming to many media destinations. And redundant recording is realized with SD/TF/USB/NAS.Add any self-defined text, time and image overlay at any position to announce your copyrights and have fun!

Real-time Intercom

Both embedded and analog audio encoding are supported. What’s more, with Kiloview voice intercom software (optional), it can realize multi-party voice intercom function.

More Highlights

  • Embedded Audio
  • SDK/API Development
  • 3.5mm Analog Audio Input
  • High-end Chip
  • Real-time Loop
  • Web-Based Interface
  • USB-extended PTZ
  • 7 * 24h Operation

Applications

NDI Program Production, TV Programming, Lecture Capture, Online Courses, Remote Learning, Course Recording, Broadcast Meetings, Web Training, Remote Pathology, Telemedicine, Conferences, Concerts, Sports

Compatible with TriCaster, vMix, OBS and other platforms, so your video production can be carried out anytime, anywhere.

Parameters

Model E1 NDI(SDI)/E2 NDI(HDMI)
Video input E1 NDI:1*BNC SDI; E2 NDI:1*HDMI
Analog audio 2*3.5mm
USB port 2*USB 2.0 Type-A
Micro SD 1*Micro SD/TF Card storage interface
Network 100M Ethernet
Video loop E1 NDI:1*BNC SDI; E2 NDI:1*HDMI
Input video resolution Up to 1080P60H, details as below:
SDI: 1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz;
1080i50/59.94/60Hz; 720P23.98/24/25/29.97/30Hz; 720P50/59.94/60Hz
HDMI: 1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz;
1080i50/59.94/60Hz; 720P30/50/59.94/60Hz; below 1920*1200.
Video encoding H.264/AVC, Motion-JPEG
Audio encoding AAC/G.711
Encoding latency <67ms
Media transmission protocols NDI｜HX/SRT/RTMP/ RTMPS/HLS/TS over UDP/RTSP, customize for SIP
Image and text overlay Support
Record storage Micro SD/TF card local recording, and NAS network storage
Management Web UI and remote management with KILOVIEW KiloLink Server
Power supply/Consumption DC 12V 1A/4W
Operating temperature -20~60℃
Dimension 125*89*28mm (4.92”*3.50”*1.10”)
Weight 380g (13.4oz)
