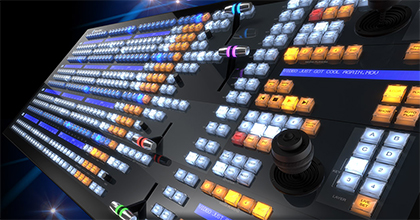

4-Stripe Control Panel IP Series

Approach every production with absolute confidence.

The NewTek IP Series 4-Stripe Control Panel is the tactile interface that connects you to the systems, devices, software, and sources that form your interconnected production environment. Paired with the Video Mix Engine over your network, the 4-Stripe Control Panel delivers consummate control of the most sophisticated productions under the most demanding of circumstances.

Category Tags ,
Facebook
WhatsApp
Twitter
Email

Descripción

Expertly Engineered

Meticulously crafted for performance and style, the 4-Stripe Control Panel combines the comprehensive functionality, precision controls, premium hardware mechanics, and ergonomic design that operators demand with the visually arresting aesthetic that executives covet.

Functionally Sound

  • Responsive, multi-bus operation of any Video Mix Engine on the network with four, independently assignable control stripes
  • Intuitive, multi-source video mixing with 72 total crosspoints per stripe (arranged in three, 24-button banks) and dynamic LCD label displays
  • Decisive, manual control of multiple functions with four, multi-mode T-bars supporting variable illumination, and two multi-purpose 3-axis joysticks
  • Inclusive command of real-time video operations, including convenient, fingertip access to media, COMPs, MEMs, and macros

Technical Specifications

Stripes

4 x panel stripes independently configurable for switcher, M/E, PREVIZ, or NDITM output router operation

  • Dynamic LCD crosspoint label displays
  • Support for bank, layer and key delegation
  • Support for multi-engine control

Crosspoints

72 x crosspoints per stripe (24 buttons with 3 delegate banks)

COMPs

Direct panel access to VMC1 Video Mix Engine COMP Bin presets

Macro

Macro mode and number pads supporting attachment and activation of user-configured macros

Contenido audiovisual

2 x media player control keypad with player delegation and command buttons

MEM

Direct panel access to VMC1 Video Mix Engine switcher and M/E MEMs

T-Bars

4 x multi-mode T-Bars (1 per stripe) with dynamically variable illumination and support for BKGD video layer and key layer delegation

  • Fade
  • Transition
  • Fade to Black
  • LiveSetTM Zoom

Joysticks

2 x multi-mode joysticks (3-axis) supporting stripe, layer and key delegation

  • Position/Scale
  • Rotate
  • Crop
  • LiveSet virtual camera control
  • PTZ camera control
  • Media player shuttle

NIC

1 Gigabit NIC

Physical

VMC1 4S chassis with 25W PSU

  • 42.2 x 21.26 x 6.13 in (107.2 x 54.0 x 15.6 cm)
  • 49.75 lbs (22.57 kg)
