The HuddleCamHD SimplTrack2 – PTZ OPTICS

Simplify Camera Control for Live Productions

Available in 20x zoom | Can Be Upgraded to NDI®

What is a tracking camera?

The HuddleCamHD SimplTrack2 is a pan, tilt, and zoom camera that automatically tracks subjects and requires no camera operator. The SimplTrack2 is also ideal for non-studio environments, such as broadcasts from houses of worship, offices, schools and other locations.

Designed to simplify camera control for live presentations, the SimplTrack2 is the most advanced and reliable auto-tracking camera on the market.

Facebook
WhatsApp
Twitter
Email

Descripción

AI-Based Auto Trackingwith Adjustable Modes

The SimplTrack2 uses fluid AI based auto-tracking technology. With anUltra-HD 4Kreference camera to steer a20X optical zoom camera, the SimplTrack2 can be mounted up to 50 feet (16 meters) from a speaker to track that person’s movement across a field of view. With full control over scene height and width, users can customize frame settings to capture entire white board spaces, allowing the camera to automatically pan, tilt and zoom with a variety of speed settings to match presentation styles.

In addition to auto-tracking, users can create up to four unique preset zones within a scene. When the subject moves within these zones, the camera will stay fixed on that location.

Touchless Control and Automation

SimplTrack2 preset zones can also be used to automate AV systems. Each preset zone can be used to send an HTTP, TCP or UDP trigger to control systems such as Crestron, Extron or even software like vMix. In this way, users can use preset zones to switch video for lectures that are being recorded or even turn on various AV-connected devices. For example, use a preset zone to automatically show a teacher’s presentation PC full screen in a recording.

Manage on a Network AND Live Stream

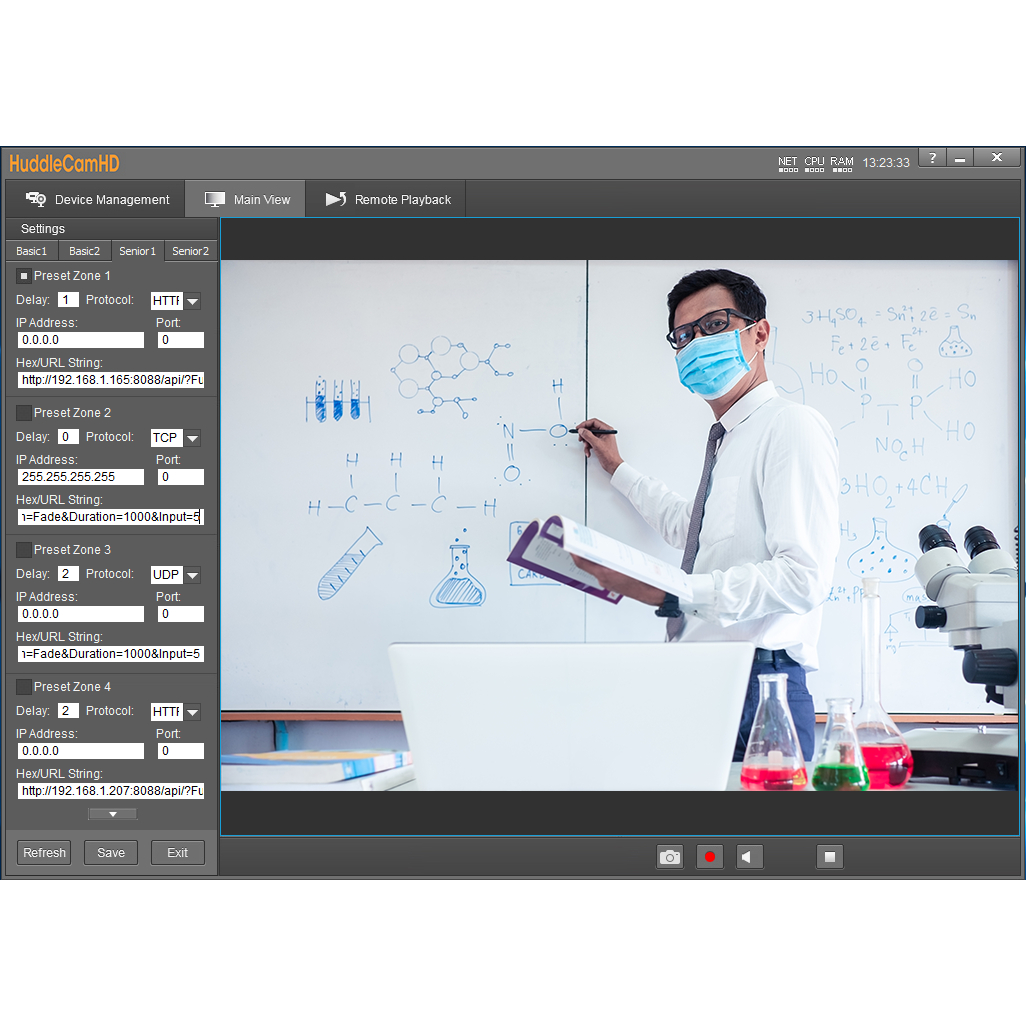

The SimplTrack2 camera control software makes managing and controlling cameras connected to a network easier. The software can be used for live viewing, camera control, video recording (via SD card, or local computer hard drive), live streaming management, zone configurations and tracking parameter adjustments.

The SimplTrack2 can live stream directly to Facebook, YouTube and other CDNs. Live stream to up to four destinations at the same time, for production or high-quality video monitoring. The SimplTrack2 also features a 3.5mm audio input to include audio with each stream.

Discreet Mounting Options

Mount your auto-tracking camera above, below or beside the action to capture the ideal view every time.

Click the links below to learn more about our camera mounts:

Designed for Scalability

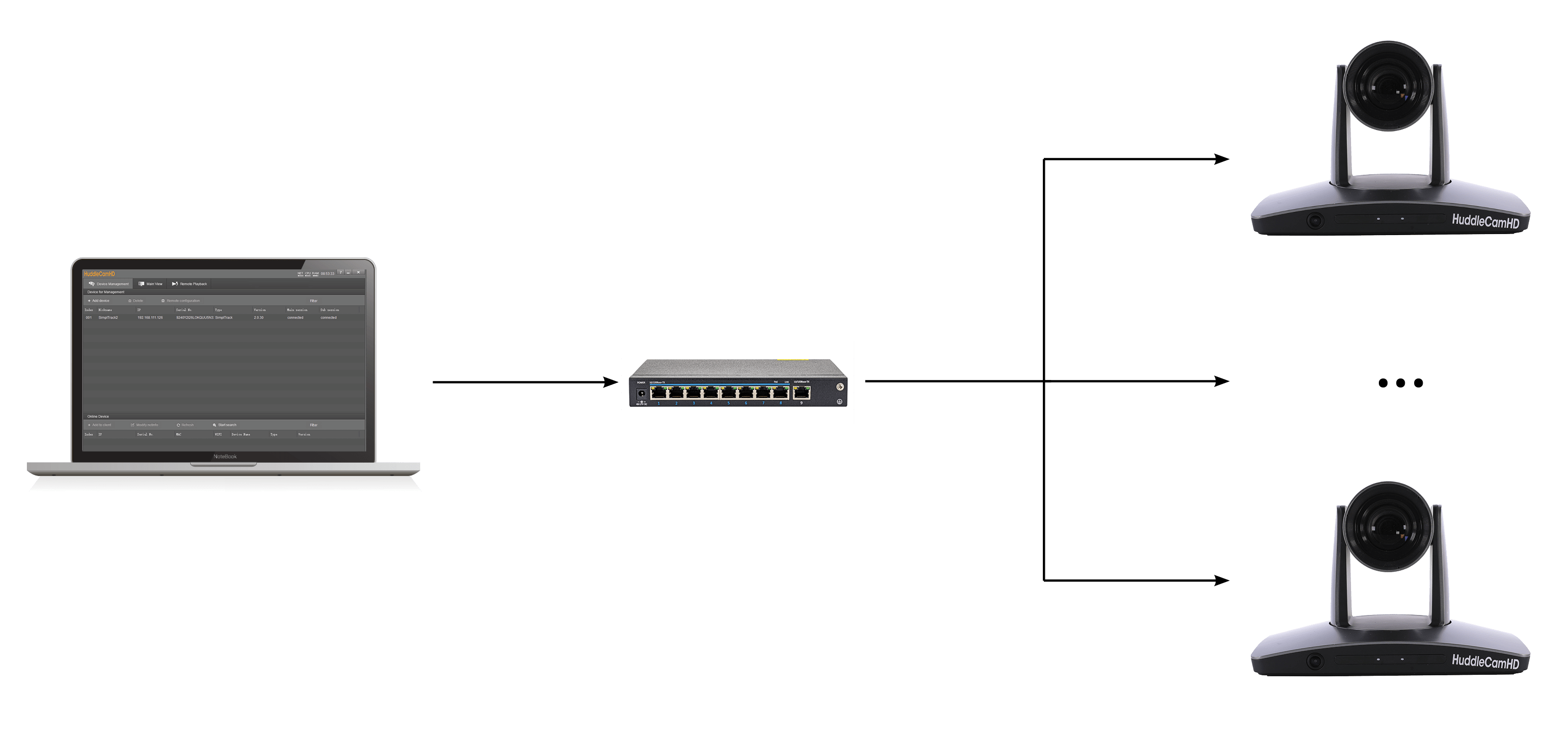

SimplTrack2 comes equipped with HuddleCamHD’s dedicated management software, allowing enterprises with large-scale deployments to remotely configure and control an unlimited network of cameras from anywhere on the same LAN. The software can automatically detect all SimplTrack2 cameras on the network, as well as HuddleCamHD’s SimplTrack Lite and HuddleView. If your setup includes other cameras, these can be manually added to the management software.

Unrivaled Warranties

With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.

The SimplTrack2 comes with a 3-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty.

Unparalleled Value, Award-Winning Support

When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help.

Tech Specs

Tracking Camera Image Sensor & Lens Video Sensor 1/2.8” EXMOR, 2.14 Mega Pixel
Frame Rate 60fps @ 1920x1080p
Lens Zoom 20X Optical, f=4.7-94mm
Field of View 3° (tele) to 59° (wide) Horizontal
Min. Lux 0.5 Lux
Reference Camera Image Sensor & Lens Video Sensor 1/2.8” EXMOR, 2.14 Mega Pixel
Field of View 86° (Horizontal) x 52° (Vertical)
Lens 2.4mm
Pan/Tilt Movement Pan Movement ±170°
Pan Speed 0.1° to 120°/s
Tilt Rotation +90° to -30°
Tilt Speed 0.1° to 90° /s
Presets 256 Presets
Electrical Index Power Supply 12V DC 2.5A
Input Power 20W (Max)
Physical Specifications Material Aluminum, Plastic
Width 9.6” (243.0mm)
Depth 5.7” (145.0mm)
Height 6.4” (163.0mm)
Weight 2.64 lbs (1.2 kg)
Working Environment Indoor
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Color Gray

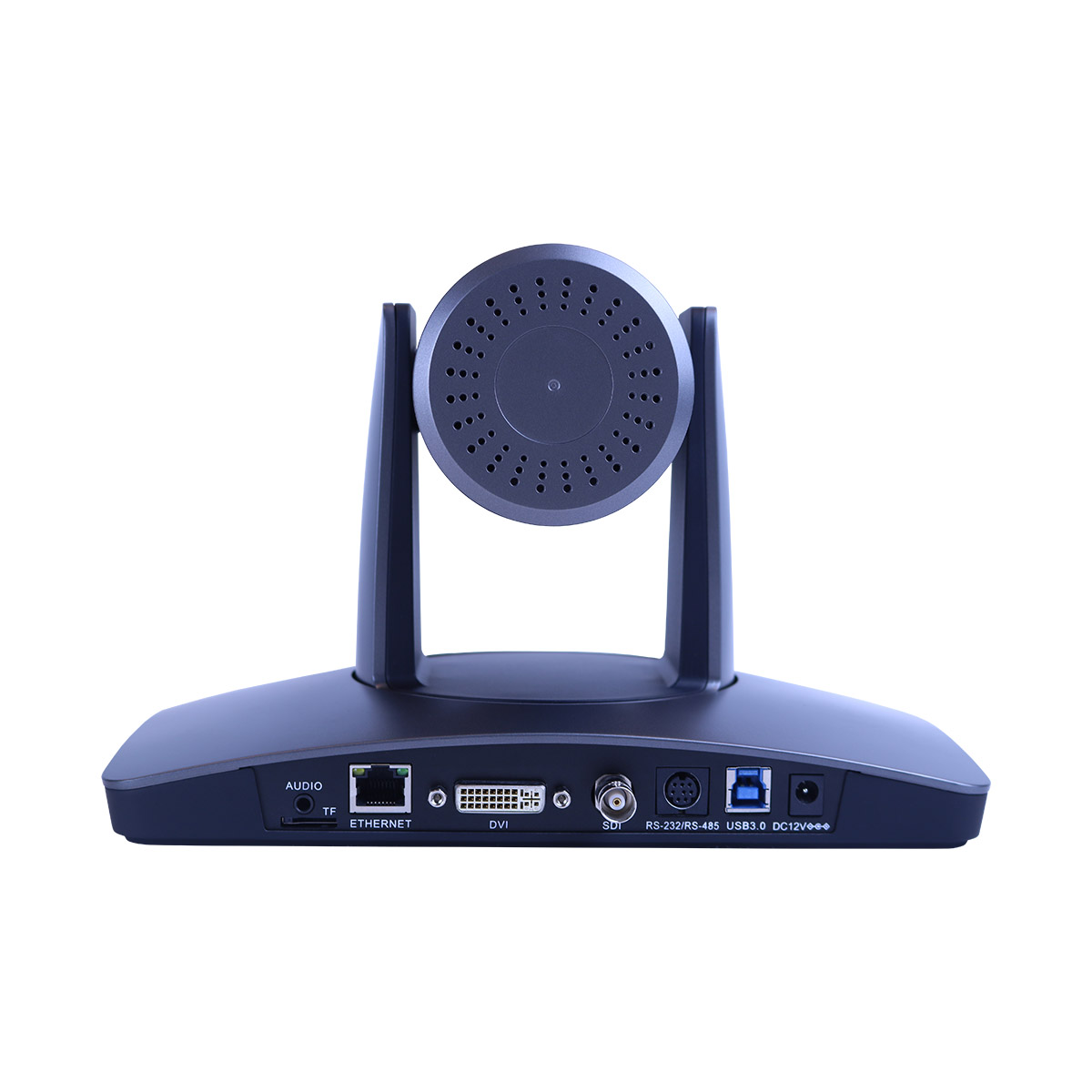

Rear Board Connectors HD Video Interface 3G-SDI, USB 2.0, DVI-D
Controller Signal Interface Phoenix Connector (VISCA IN)
Audio Input Interface Phoenix Connector
Network 10/100
Power Supply Interface DC 12V 2.5A
Warranty Mfg. Warranty 3 Years Parts & Labor

Firmware

SKU Version Download zip file
HC20X-SIMPLTRACK2 2.1.34 Download Now

How to Get NDI® on Your SimplTrack2

1. Enable NDI® by upgrading your camera with the latest firmware above

2. Purchase your NDI® License from NDI.tv

3. Start using your camera with NDI®!
