Descripción
Track Subjects with Ease
The HuddleCamHD SimplTrack Lite makes it easier than ever to deliver high-quality conferences or lectures with no camera operator – or expertise – required.
- Smooth, automatic motion tracking up to 55ft away with focus up to 20X in 1080p at 60fps (30fps USB) with up to 270° rotation and 59.5° FoV
- True plug and play: Use a USB 2.0 cable to connect to any computer and start auto-tracking
- Set and forget presets: Want to limit your tracking range? Set preset zones to keep the camera centered on whiteboards, conference tables and more
Integrate with Any Platform
With a broad range of output options, including NDI®|HX, USB 2.0, IP, SDI, and HDMI compatibility, the SimplTrack Lite is easy to set up and can integrate seamlessly with your current system.
- Compatible with most videoconferencing, streaming, lecture capture and learning management system platforms
- Built-in 3.5mm Line In audio embedding connection can be connected to any amplifier or mixer
- Included dedicated management software allows for remote operation from any Windows PC, anywhere on the network
Deploy Anywhere
The SimplTrack Lite gives you flexible options for nearly any indoor setting, even without a dedicated PC.
- Featuring PoE (802.3af), plus multiple mounting configurations available to meet the needs of any indoor setting, including inverted mounting
- Capture subjects near or far with automatic tracking distance of up to 55ft, with 59.5° FoV and 270° rotation
- Want more control? Enable Manual Mode via IP or included RS-232 cable to operate the SimplTrack Lite with included IR remote, a PTZ camera joystick controller, or camera control apps
Designedfor Scalability

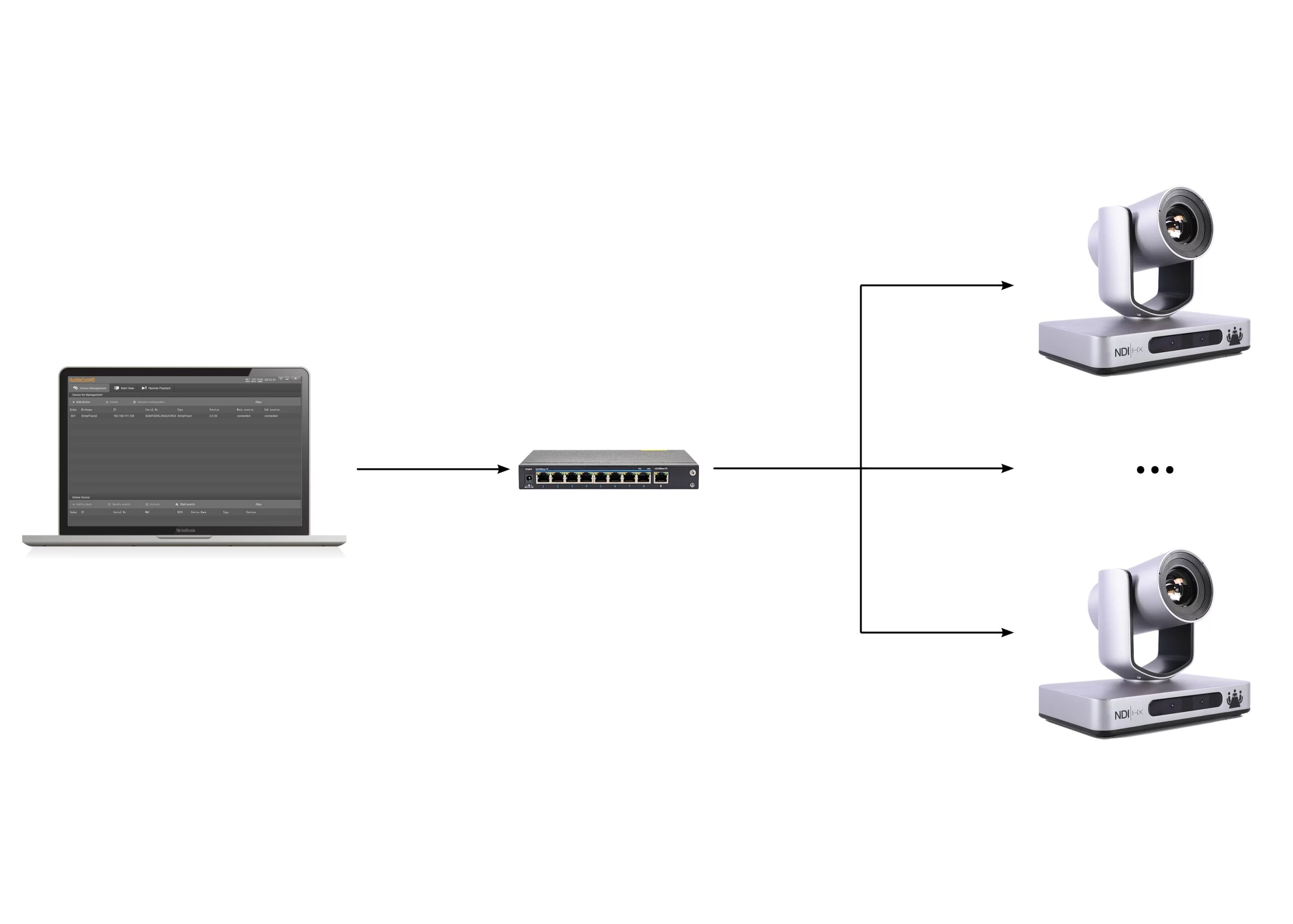

SimplTrack Lite comes equipped with HuddleCamHD’s dedicated management software, allowing enterprises with large-scale deployments to remotely configure and control an unlimited network of cameras from anywhere on the same LAN. The software can automatically detect all SimplTrack Lite cameras on the network, as well as HuddleCamHD’s SimplTrack2 and HuddleView. If your setup includes other cameras, these can be manually added to the management software.
UnrivaledWarranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
The SimplTrack Lite comes with a 3-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty.
Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help.
Features and benefits
- Frame Rate: Maximum resolution of 1920 x 1080p @ 60 fps (30fps USB)
- Lens Zoom: 20X Optical Zoom, f=4.7-94mm
- Video Sensor: 1/2.8” CMOS, 2.14 MegaPixel
- Audio Input: 3.5mm audio embedding connection
- Pan Movement: ±170°
- Tilt Rotation: Up: +90°, Down: -30°
- Presets: 64 Presets
- Video Signal: USB 2.0, 3G-SDI, HDMI, RTSP, RTMP, NDI®-Enabled
- Lens Field of View: 2.9° (tele) to 59.5° (wide) Horizontal
- Control: IP & RS-232
- Color: Gray
- Power Connection: DC 12V 2.5A or PoE (802.3af)
- Warranty: 3 Year parts and labor
Tech Specs
| Image Sensor & Lens | Video Sensor | 1/2.8” CMOS, 2.14 Mega Pixel |
| Frame Rate | 60fps @ 1920x1080p | |
| Lens Zoom | 20X Optical, f=4.7-94mm | |
| Field of View | 2.9° (tele) to 59.5° (wide) Horizontal | |
| Min. Lux | 0.5 Lux | |
| Pan/Tilt Movement | Pan Movement | ±170° |
| Pan Speed | 0.1° to 120°/s | |
| Tilt Rotation | +90° to -30° | |
| Tilt Speed | 0.1° to 90° /s | |
| Presets | 64 Presets | |
| Electrical Index | Power Supply | 12V DC 2.5A |
| Input Power | 20W (Max) | |
| PoE | PoE (802.3af) Supported | |
| Physical Specifications | Material | Aluminum, Plastic |
| Width | 8.31” (211mm) | |
| Depth | 5.47” (139mm) | |
| Height | 8.19” (208mm) | |
| Weight | 2.64 lbs (1.2 kg) | |
| Working Environment | Indoor | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) | |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) | |
| Color | Gray | |
| Rear Board Connectors | HD Video Interface | 3G-SDI, USB 2.0, HDMI, RJ-45 |
| Controller Signal Interface | 8-pin mini din (VISCA IN) | |
| Audio Input Interface | 3.5mm line in (embeds over IP feed only) | |
| Network | 10/100 | |
| Power Supply Interface | DC 12V 2.5A or PoE (802.3af) | |
| Warranty | Mfg. Warranty | 3 Years Parts & Labor |
Firmware
| SKU | Version | Download zip file |
|---|---|---|
| HC20X-SIMPLTRACKLITE | 1.0.43 | Download Now |
