Overview
This low-latency wifi-based wireless streaming device is designed to meet your production needs, even while responding to the normal networking challenges productions typically face. For example, when wifi is lost, recordings are saved to an SD card, allowing for a secure upload once connection is restored.

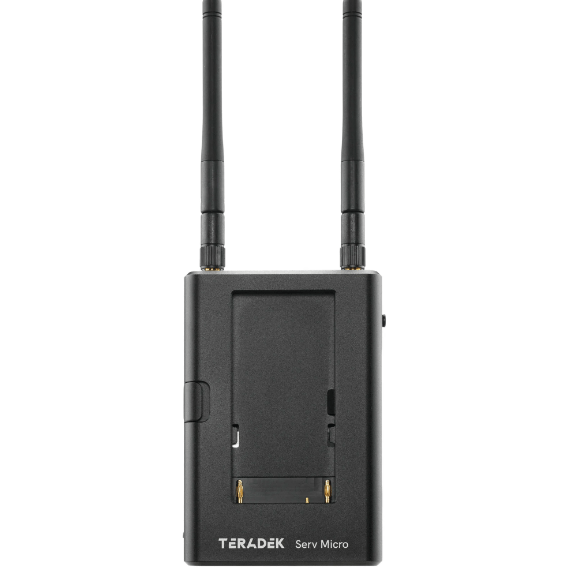

Serv Micro is also designed for quick mastery, with intuitive tools and easy-to-use workflows available through Vuer app and Core cloud solution. Serv Micro comes equipped with HDMI in and loop-through, ethernet and wifi connectivity, an auxiliary audio input, USB type A connection for easy connection to cellular bonding options and a built-in L-Series battery plate.
Three ways to use Serv Micro
- Stream to iOS and Android devices on set without an internet connection usingTeradek VUER app. This is recommended for on-set producers and clients using personal devices.
- Share live camera feeds with anyone in the world usingTeradek Core. This allows for real-time collaboration with remote creatives, producers, and clients.
- Share instant recordings for remote playback and review. Remote viewers can access and scrub through takes instantly after they’ve been shot using Teradek Core or third-party cloud platforms including Frame.io and Sony Ci.
Technical Specs
Video
Video Inputs

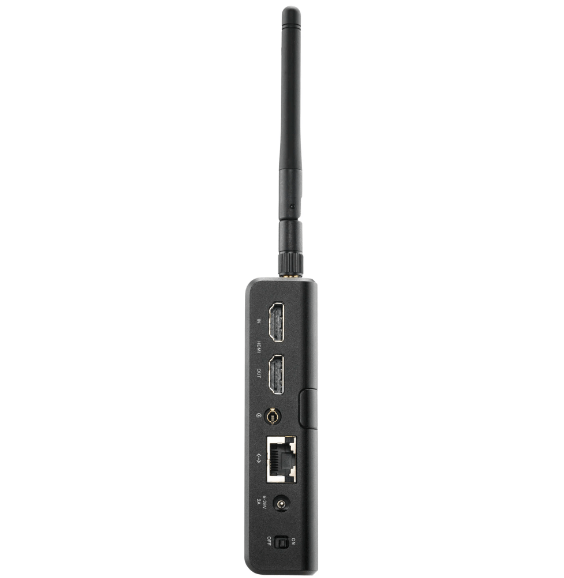

- 1 x HDMI 2.0 Type-A receptacle
Video Outputs
- 1 x HDMI 2.0 Type-A receptacle
Bonding
Bonding
- Simultaneous bonding over up to 7 networks:
- Ethernet
- Wi-Fi
- USB cellular modem
- Up to 4 cellphones (iOS or Android)
Video Processing
Supported Video Bitrate
- • USB cellular modem
Video Format Conversion Support
- Built in video scaler and deinterlacer
Protocol Support
Network Protocols
- TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Supported Video Transport Protocols
- AirMix, Teradek bonding
Audio Processing
Audio Compression
- AAC-LC
Supported Audio Bitrate Details
- 48Kbps to 512Kbps
Inputs
Audio Input
- Embedded audio input (2 channel)
- Analog line or Microphone in (2 channel)
Physical
Dimensions
- 4.1”W x 2.9”D x 1.1”H [105 x 75 x 28mm]
Weight
- 190g (6.7 Oz)
Construction
- Machined aluminum and ABS Plastic
Mountability
- Can be mounted horizontally or vertically with 1/4” 20 or M3 mounting holes
Interfaces
Configuration Interfaces
- Feature-rich Web UI for configuration and control
- OLED Status Display w/5-way navigation joystick
Switches
- On/Off switch
Recording Storage
- Full size SD/SDXC (class 6 and above) formatted exFAT
- USB formatted FAT32
Mobile App
- Serv Manager for iOS and Android devices
Cloud Services
- Teradek Core, Frame.io, Sony Ci
Usb Interface Functionality
- Powered USB host port
Network
Ethernet
- 10/100/1000 BASE-T
Wireless
- WiFi 6: Dual Band MIMO 802.11 IEEE a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax
Usb

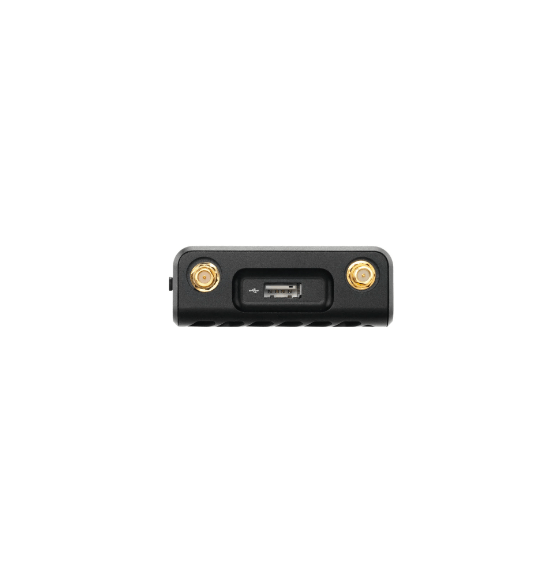

- USB type A (host) for 3G/4G modem support
Rf Channel Selection
- Auto with 3 modes: (2.4 or 5 GHz), Auto (2.4 GHz only), Auto (5 GHz only)
- Manual: Configurable to specific channels
Power
Power Input
- 6-28V barrel connector
- Sony L Series battery
Nominal Power Consumption
- 4.5W using Ethernet
- 6W using WiFi
