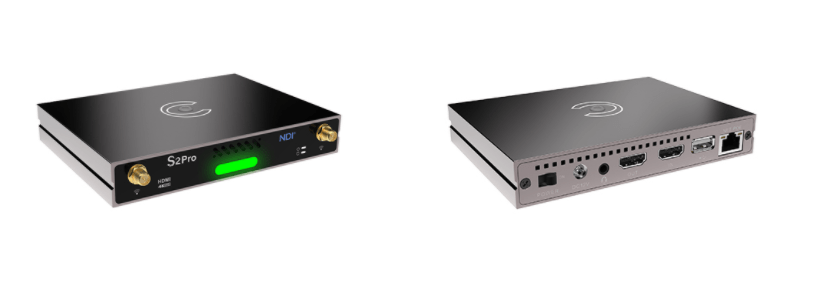

S2 4K Video Encoder

S2 4K video encoder is an Ultra High Definition(UHD) video encoding device which supports 4K 30Hz resolution video input with H.265(HEVC)/H.264 encoding. HDMI video sources can be encoded and compressed over a wired network, to realize long-distance transmission and live broadcast for UHD video in network WAN and LAN.

Category
Facebook
WhatsApp
Twitter
Email

Descripción

Ultra high definition, lower bit rate, lower latency video transmission.

● With advanced H.265/HEVC encoding technology, lower coding rate can be achieved. It can also transmit UHD video on low bandwidth network which can greatly save your network flow.
● Slice encoding technology ensures lower latency at the encoding side.
● Supports up to 4K 30HZ resolution.
● Wider adjustable code rate from 64kbit/s to 40Mbit/s.



Powerful streaming media service function, supports RTSP/ RTMP/ TS/ Onvif/ SIP/ GB/ T28181(Customized)/ NDI(Customized) and SRT protocols.

● RTP/ RTSP/ RTMP/SRT/ HLS/ TS/ Onvif/ SIP and some other streaming media protocols supported for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform / NVR system.

● SRT supported to ensure secure and reliable transmission.
● Dual stream output, the main stream code rate can be up to 4K 30Hz, and the sub-stream supports 720p 60Hz video encoding and customization available.



Portable size, image and characters overlay supported with functions of voice intercom, NAS storage, loop monitoring etc.

● Portable and low power consumption makes it 24 hours continuous working available.
● Capable with customized text and image overlay function, which can be at any position on the screen.
● Audio embedding encoding supported, with voice intercom function (need to deploy voice intercom software).
● Supports NAS network storage.
● With video real-time loop function, there is no delay and convenient for live monitoring.
