OVERVIEW

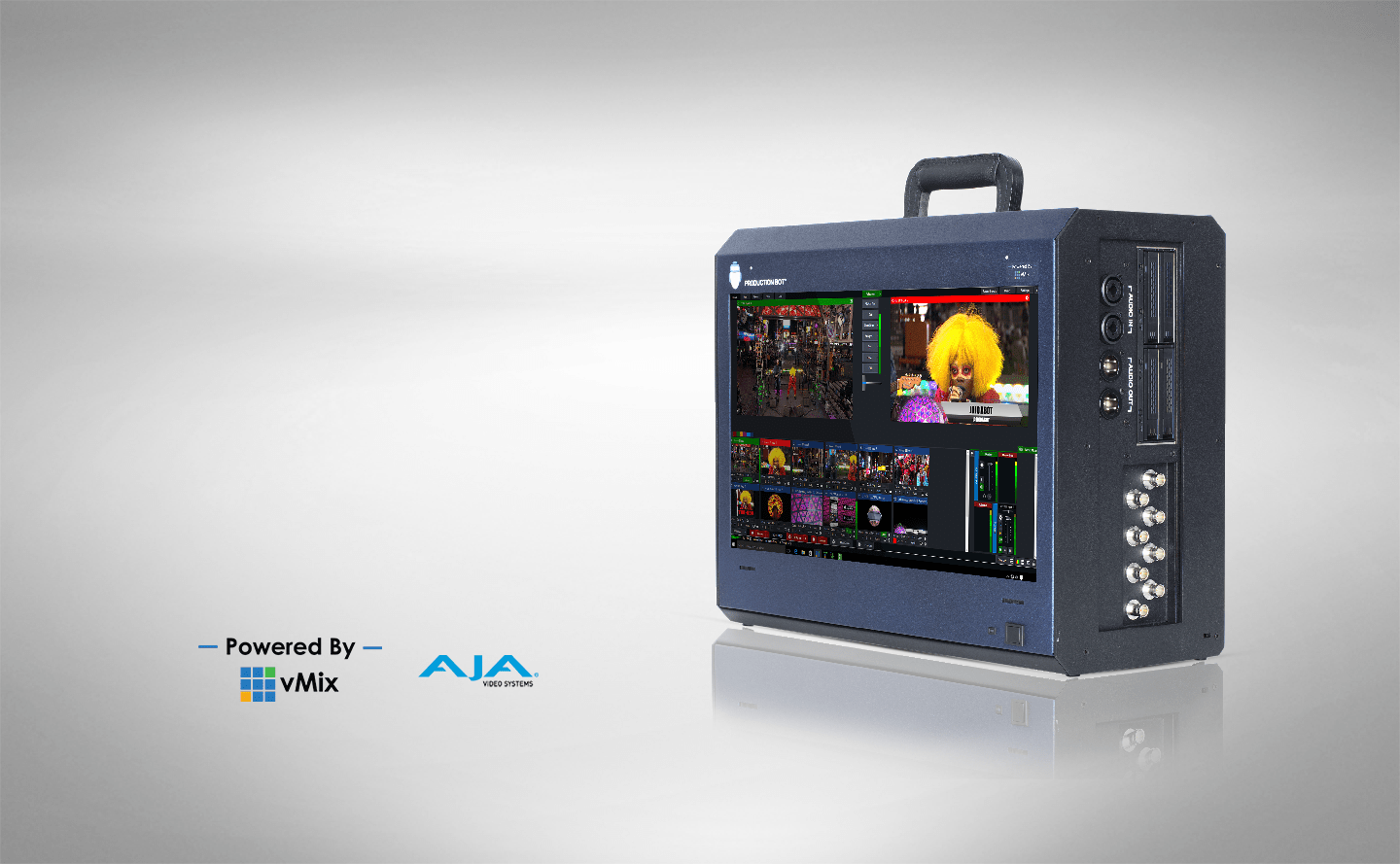

A switcher in a suitcase – the extremely portable Production Bot Switch 8 can be used as a live production studio, mobile editing station, or a DIT station. This powerful system comes preinstalled with vMix live streaming software. Cut cameras, run replays, integrate custom graphics, record program and camera isos, all in one unit. Can be used in any broadcast environment including 4K, varied frame rate, as well as external audio over XLR or ¼”. Stream output live to many popular streaming platforms such as Facebook, Periscope, and Twitch. While the Production Bot is ideal for a small footprint, the screen real estate can be expanded and populated with vMix’s Multiview options. Kit includes the Production Bot Switch 8 with 17.3” built in screen, keyboard, mouse, and a rolling bag with telescoping handle – perfect for carry-on luggage.
HARDWARE FEATURES

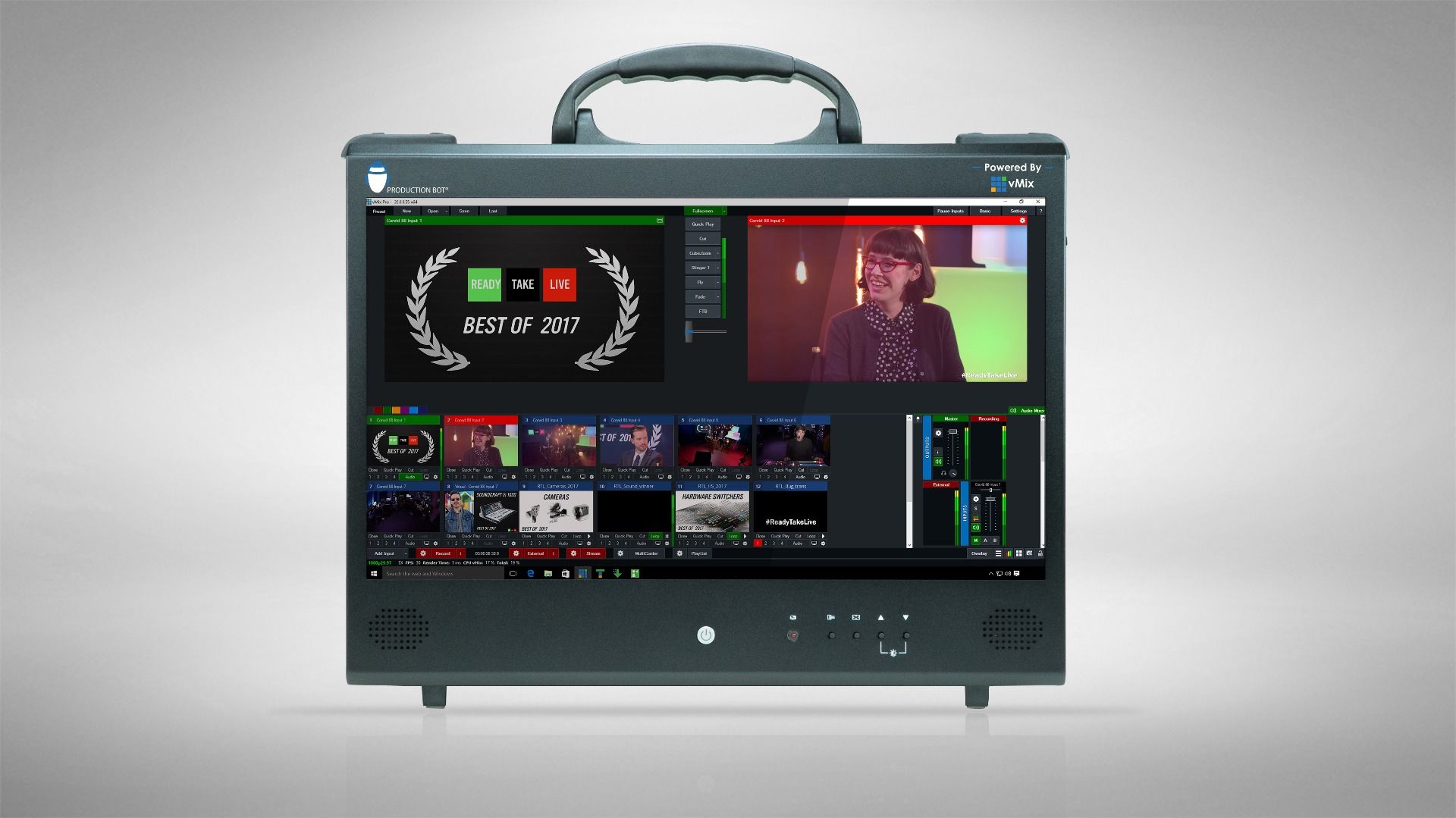

Built-in Display:
The built-in display eliminates the need for external monitors but can still be expanded via DVI, HDMI or DisplayPort for multiviewer and other application access using external monitors.
I/O Cards:

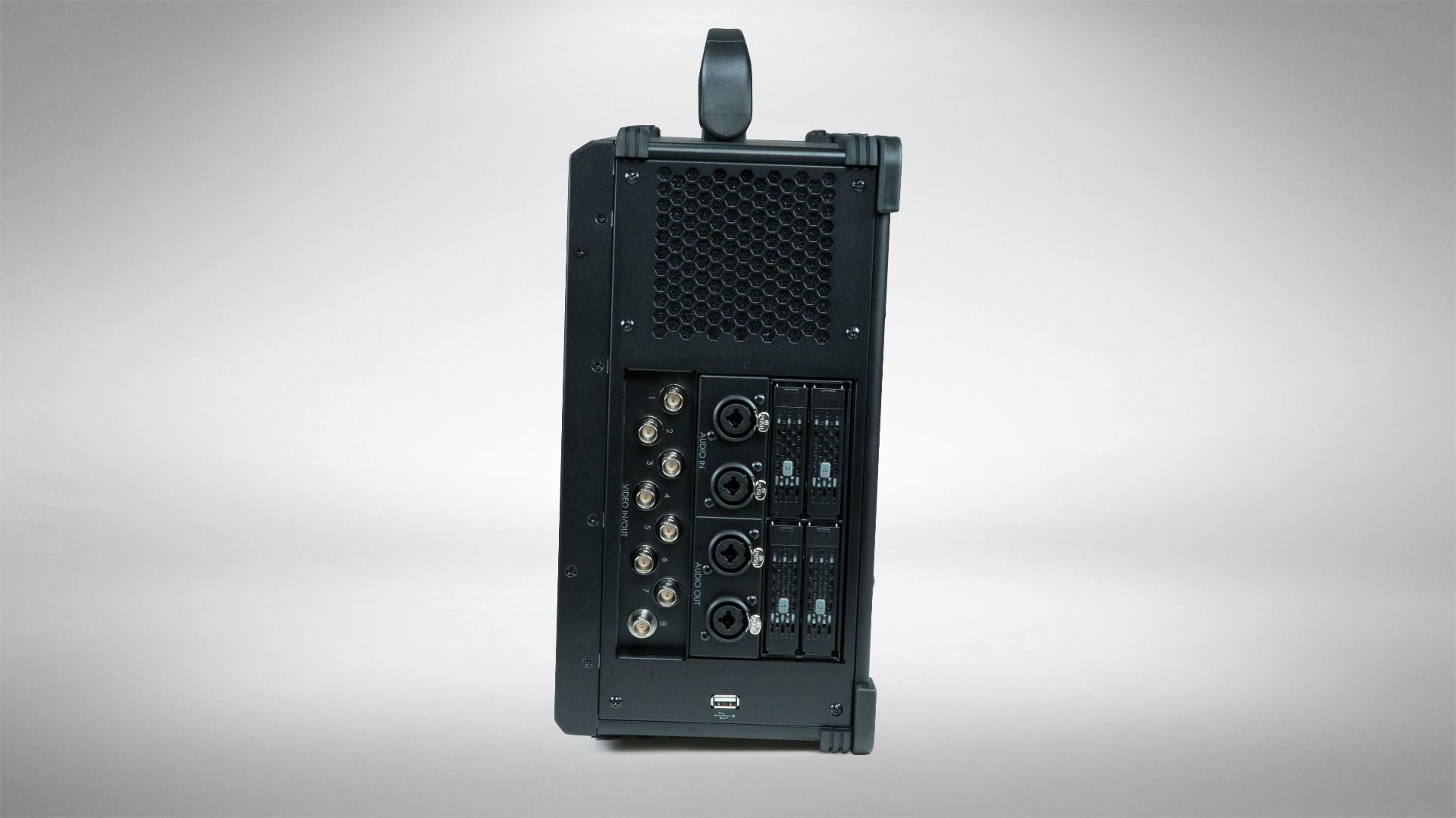

The Production Bot Switch 8 is equipped with an AJA capture card including eight HD-SDI inputs/outputs. You can also group four inputs together to provide two 4K inputs. When using the card in 4K mode, standard 1080/720 resolutions are unavailable. With up to two SDI outputs, producers can send multiple high-resolutions feeds. For example, a “dirty” version complete with overlays for broadcast and a “clean” version for recording and reuse later. Alternatively, one output can be dedicated to connect a broadcast-grade preview monitor to supplement the Production Bot’s built-in screen.
Removable SSD Slots for ISO Recording:
Production Bot Switch 8 includes a 1TB SSD drive pre-loaded in one of the four
hot swap bays enabling ISO recording of any input. When finished, unplug the
drives to move your footage to another machine for post-production or archiving.
vMix Call and NDI Capable:
vMix Call makes it easy to add remote guests to your live production. With only a web browser and webcam your guest can connect into your live show with HD video and high quality audio from anywhere in the world. Send and receive multiple channels of broadcast quality low-latency video over a gigabit ethernet network utilizing NDI with vMix.
Balanced XLR/TRS Audio I/O:
2 channels of audio over balanced XLR/TRS is allowed on top of the 16 channels of embedded SDI. The included XLR outputs can also allow a custom audio monitoring solution. Finally, if analog audio isn’t available, the Production Bot Switch 8 can interface with USB audio inputs and outputs, as well as Dante (separate software required).
GENERAL
Dimensions: 7” (D) x 14” (H) x 16.75” (W)
Weight: 22.5 lbs
PACKAGING INFO
Package Weight: 37 lbs
Box Dimensions (LxWxH): 21” x 23” x 19.5”
IN THE BOX
Production Bot Switch 8 portable video production system
Rolling bag with telescoping handle
USB keyboard and mouse kit
USB Wifi adapter
Production Bot mouse pad
Windows 10 Pro 64-bit DVD
AC power cord
Quick Start Guide
Hardware for drive cage
Limited 1 Year Warranty
COMPUTER
CPU: Intel Core i7-7700K
GPU: Model: NVIDIA GeForce GTX 1080
RAM: 8 GB
Memory: 32 GB DDR4
System Drive: Primary: 500GB SSD + failover 500GB SSD
Media Storage: 2TB (2x 1TB SSDs)
DISPLAY
Size: 17.3″
Brightness: 400nit
Contrast Ratio: 600:1
CONNECTIVITY
Inputs
Video: 8x HD-SDI on BNC with up to 16-channel embedded audio (depends on IO selection)
Audio: 2x balanced line level XLR/TRS combo jack
1 3.5 mm unbalanced stereo
Outputs
Video: 8x HD-SDI on BNC with up to 16-channel embedded audio (depends on IO selection)
GPU: 1 HDMI
1 DisplayPort
Audio: 2x balanced line level XLR/TRS combo jack
1 3.5 mm unbalanced stereo
SUPPORTED FORMATS
Supported Resolutions: 4096 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
3840 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
4K 29.97p (max 2 inputs)
1080p: 23.98, 24, 25, 29.97, 30
1080PsF: 23.98, 24, 25, 29.97, 30
1080i: 25, 29.97, 30
720p: 50, 50.94, 60
525i: 29.97 / 625i 25
