Brief Introduction

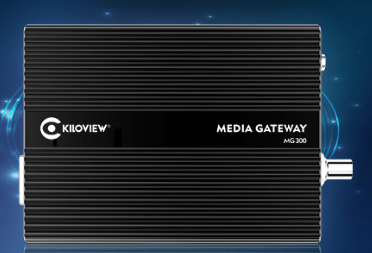

Kiloview MG300 media gateway is a high-performance embedded multi-functional device. It integrates functions such as multi-channel video decoding between NDI|HX, SRT, RTMP, RTSP, TS-UDP, and HLS to SDI and HDMI. It can do so with the same or different content, multi-view output and streaming, video image segmentation, protocol cross conversion, stream media and distribution services.
It’s a protocol converter
MG300 is compatible with NDI®|HX (2.0) , SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.It supports the decoding with all those different protocols, at the same time supports up to 9 protocols cross conversion. Each input stream is converted into 4 same or different protocols output.
Powerful IP Stream Function
Multi-channel video streams can be re-published as a Multiview video source with free layout;
Up to 9 channels of IP streaming distribution (including the Multiview video source) and each stream can be pushed to up to 4 same or different targets simultaneously.
It’s a Media Server
It supports up to 50 concurrent access for streams distribution/live streaming;
(Note: The actual concurrent access capability depends on the specific network bandwidth, video format and other factors. The device transmission limit is 600Mbps).
It’s a Transcoder
Kiloview MG300 highlights video transcoding between H.264 and H.265. It can also combine multiple video streams into a merged video and push it to the live broadcast platforms.
It’s Also a Decoder
It supports decoding up to 4K H.264/ H.265 IP streams and decode the streams to output 3G-SDI and 4k HDMI. It supports decoding up to 9 channels of videos simultaneous. Note: 9 channels with 1080P30, or 8 channels of 1080P60, or 4 channels of 4KP30.
Low Latency and High Quality
Intelligent delay control technology to achieve a less than 200ms decoding delay in network environment
Image enhancement and fault-tolerant technology for low code-encoded video, 10% of network packet loss video, etc., clear and distortion-free decoding output
RTMP Server Supported
With RMTP server, the encoder can directly transmit the video to Kiloview decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.
Dual Output, Same or Different
3G-SDI and 4K HDMI dual interface for outputting, output content can be either the same or different.
(Note：HDMI output up to 3840×2160@60Hz, SDI up to 1920×1080@60Hz.)
Customize Your Output Display
- Free Layout: The output display can be either in grids or a free layout with customized de-sign, PIP, PBP, POP, all as you wish.
- Free Resolution: The output resolution is adjustable, de-interlace, frame rate adjustable
- Free output background and OSD
Video Previewing Function
With updated feature, you can preview 16 streams of real-time video streams or images on its web page, from which you can choose 9 of the streams for output on displaying screen.
Other Functions
- Support SDI/HDMI embedded audio or 3.5mm analog audio output;
- Support audio mixing;
- Dual network ports for multi-purpose management;
Parameters
| Model | MG300 |
|---|---|
| Network | 2*100M/1000M RJ45 adaptive Ethernets |
| Decoding output | 1*SD/HD/3G-SDI, up to 1080P 60Hz 1*HDMI, up to 3840*2160@60Hz |
| Analog audio output | 1*3.5mm Line out |
| Analog audio input | 1*3.5mm Line in |
| USB | 1*USB 3.0 Type-A |
| Access protocol | NDI-HX/SRT/RTSP/RTMP/TS-UDP/HTTP, (NDI|HX means NDI|HX Version 2.0, SIP/ONVIF (customize) |
| Output protocol | NDI|HX 2.0/SRT/RTSP/RTMP/TS-UDP |
| Protocol conversion | 9 channels1080P video conversion |
| Streaming distribution | 50 channels of RTSP, 36 channels of RTMP/SRT (Not more than 800Mbps) |
| Live streaming | 9 channels*4 channel 1080P |
| Number of decoding | 4K 30Hz H.264/H.265: up to 4 simultaneous channels 1080P 50Hz/60Hz H.264/H.265: up to 8 simultaneous channels 1080P 30, 1080i 50/60Hz, 720P and below H.264/H.265：up to 9 channels simultaneously |
| Video decoding standard | H.264, H.265 |
| SDI output format | 1080P60/59.94/50,1080P30/29.97/25/24/23.98,1080i60/59.94/50.720P60/ 59.94/50, 576i50, 480i60 |
| HDMI output format | 4K 3840×2160@60/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50 Compatible with VESA standard format |
| Video rate range | 128Kbps ~ 40Mbps |
| Audio decoding | AAC G.711 (aLaw/uLaw) |
| Audio rate range | AAC: 8Kbps ~ 320Kbps G.711: 64Kbps |
| Decoding delay | ≤200ms |
| Split display style | Support 1/2/3/4/5/6/7/8/9 splitting; Support re-encoding the splitted and recombined video for live streaming/ transmission. The image supports up to 1080P60 H.264 encoding. |
| Management interface | Web |
| Remote management | Support |
| Remote firmware upgrade | Support |
| Operating temperature | -25 ~ 60°C |
| Dimension & weight | 140*105*28mm (5.5”*4.1”*1.1”/380g/13.4oz) |
| Power consumption | ≤6W |
| Power supply | 12V/1A |
| Remark | NDI|HX means NDI|HX Version 2.0 |
