Descripción
A Free Mixture of 4/16/32 Channel
The Kiloview Cradle Series include 1RU or 3RU rack-mounted frame, freely mixed with 4 channels (1RU),16 channels/32 channels (3RU) codec modules. It comes with redundant power modules, centralized heat dissipation, ensuring longtime stable operation, and benefits your IP video deployments of any size and complexity.
High Density
You may need to use multiple devices in a workflow, and sources may change over time or from day-to-day. With Cradle, you can design 4 encoder and decoder modules in a 1RU chassis, 16x or even 32x in a 3RU chassis to make them work perfectly in your environment.
All inserted encoding and decoding module support SDI/HDMI+3.5mm audio, and the decoding module supports HD or 4K video output.
High Flexibility
SDI? HDMI? All in, all out
No matter what video sources you have, SDI or HDMI, the Cradle is your ideal choice. 1RU/3RU is compatible with SDI and HDMI of both input and output; freely insert encoding and decoding modules in a chassis.
Cradle supports the most IP media protocols like SRT/RTMP/RTSP/UDP/HTTP/HLS and benefits NDI® HX version optional. So, a Cradle can be applied to many business scenarios.
High Reliability

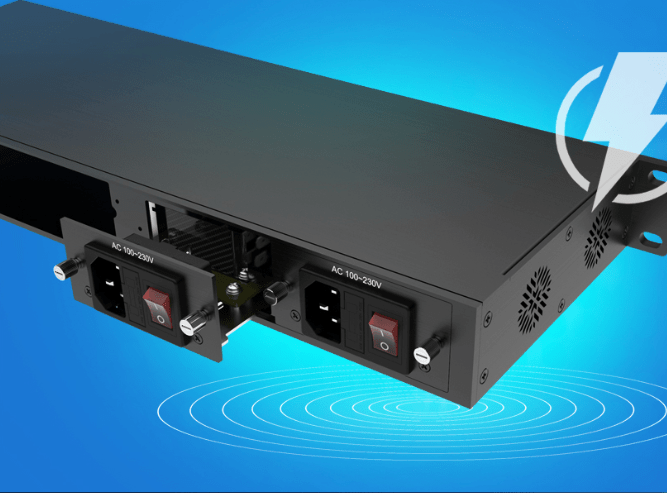

Cradle is equipped with redundant power as standard, effectively preventing power failure. At the same time, dual cooling fans give Cradle Intelligent temperature control for automatic heat dissipation, ensuring stable and 24h continuous operating. For convenient use, Cradle offers power indicator light and operation indicator light to monitor working status.
Numerous Protocols Covered
All codec modules support SRT, RTMP, RTSP, UDP, HTTP, HLS and other protocols, and you can also choose to customize NDI|HX function.
Easy to use
Cradle adopts a plug-in card structure to make sure card installation and replacement as easy as possible. You are free to mix and insert encoding and decoding modules with flexible application and replacement.
Production with Creative Features
Cradle Series support 3.5mm audio input, H.264 encoding, image and text overlay, video cropping, NAS network storage and other professional functions.
Decoding with HD/4K Output
Streaming with Multiple Protocols
Applications
TV programming, Lecture capture, Online courses, Distance learning, Course recording, Broadcast meetings, Web training, and so on.
Parameters (Encoding Module)
| Model | RE-1 | RE-100 | RE-2 | REN-1（NDI） | REN-100 | REN-2（NDI） |
|---|---|---|---|---|---|---|
| Input | 1*BNC SDI | 2*BNC SDI | 1*HDMI | 1*BNC SDI | 2*BNC SDI | 1*HDMI |
| Loop | 1*BNC SDI | 2*BNC SDI | 1*HDMI | 1*BNC SDI | 2*BNC SDI | 1*HDMI |
| Applicable frame | RU01, RU03, RU03S | RU03S | RU01, RU03, RU03S | RU01, RU03, RU03S | RU03S | RU01, RU03, RU03S |
| Analog audio port | 1*3.5mm | / | 1*3.5mm | 1*3.5mm | / | 1*3.5mm |
| NDI|HX | / | NDI|HX 1.0 and 2.0 | ||||
| Protocols | SRT/RTMP/ RTMPS/HLS/TS over UDP/RTP/RTSP /Onvif | |||||
| Video encoding | H264/AVC, Motion-JPEG | |||||
| Resolution | Up to 1080P60Hz | |||||
| Audio encoding | AAC/G.711 | |||||
| Network | 1*100M RJ45 Ethernet | |||||
| Image and text overlay | User-defined text and image overlay | |||||
| Video rotation and cropping | Support | |||||
| Management Portal | Web UI and remote management with KILOVIEW KiloLink Server | |||||
Parameters (Decoding Module)
| Model | RD- 230 | RD- 300 |
|---|---|---|
| Network | 1 * 100M/1000M RJ- 45 | 2 * 100M/1000M RJ- 45 |
| Video Output | 3G- SDI+DVI Dual Output, with Different Content | 3G- SDI+HDMI Dual Output, with Different Content |
| Video Decoding Algorithm | H.264 | H.265/H.264 |
| Decoding Capacity | Up to 4 Channels Decoding (4*1080P30 or 2 * 1080P60 and below ） | Up to 9 Channels Decoding (9*1080P30 or 8*1080P60) |
| Protocols Supported | SRT/RTMP/RTMPS/RTMPServer/HLS/ TSover UDP/RTP/RTSP |
NDI|HX2.0/SRT/RTMP/RTMPS/RTMPServer/ HLS/TSover UDP/RTP/RTSP |
| Audio Decoding Algorithm | AAC/G.711 | |
| Audio Output | SDI/HDMI Embedded, or 3.5mm Analog Output | |
| Video Preview | Supported | |
| Image/Text Overlay | Supported | |
| Management Portal | Web | |
Parameters (Media Gateway Module)
| Model | RMG300 |
|---|---|
| Network | 2*100M/1000M RJ45 adaptive Ethernets |
| Decoding output | 1*SD/HD/3G-SDI, up to 1080P 60Hz 1*HDMI, up to 3840*2160@60Hz |
| Analog audio output | 1*3.5mm Line out |
| Analog audio input | 1*3.5mm Line in |
| USB | 1*USB 3.0 Type-A |
| Access protocol | NDI-HX/SRT/RTSP/RTMP/TS-UDP/HTTP, (NDI|HX means NDI|HX Version 2.0, SIP/ONVIF (customize) |
| Output protocol | NDI|HX 2.0/SRT/RTSP/RTMP/TS-UDP |
| Protocol conversion | 9 channels1080P video conversion |
| Streaming distribution | 50 channels of RTSP, 36 channels of RTMP/SRT (Not more than 800Mbps) |
| Live streaming | 9 channels*4 channel 1080P |
| Number of decoding | 4K 30Hz H.264/H.265: up to 4 simultaneous channels 1080P 50Hz/60Hz H.264/H.265: up to 8 simultaneous channels 1080P 30, 1080i 50/60Hz, 720P and below H.264/H.265：up to 9 channels simultaneously |
| Video decoding standard | H.264, H.265 |
| SDI output format | 1080P60/59.94/50,1080P30/29.97/25/24/23.98,1080i60/59.94/50.720P60/ 59.94/50, 576i50, 480i60 |
| HDMI output format | 4K 3840×2160@60/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50 Compatible with VESA standard format |
| Video rate range | 128Kbps ~ 40Mbps |
| Audio decoding | AAC G.711 (aLaw/uLaw) |
| Audio rate range | AAC: 8Kbps ~ 320Kbps G.711: 64Kbps |
| Decoding delay | ≤200ms |
| Split display style | Support 1/2/3/4/5/6/7/8/9 splitting; Support re-encoding the splitted and recombined video for live streaming/ transmission. The image supports up to 1080P60 H.264 encoding. |
| Management interface | Web |
| Remote management | Support |
| Remote firmware upgrade | Support |
| Operating temperature | -25 ~ 60°C |
| Dimension & weight | 140*105*28mm (5.5”*4.1”*1.1”/380g/13.4oz) |
| Power consumption | ≤6W |
| Power supply | 12V/1A |
| Remark | NDI|HX means NDI|HX Version 2.0 |
Quick Comparison of our Decoders
| Product Type | Product Model | Output Interface | Resolution | Decoding Performance |
|---|---|---|---|---|
| H.265 4K Video Decoder | D300 | 3G-SDI + HDMI | SDI: up to 1080P60Hz; HDMI: up to 4KP60; |
Up to 9 Video Streams Simultaneously Decoding, 1/2/3/4/5/6/7/8/9 Splitting Screen and Dynamic Switching Supported |
| H.264 HD Video Decoder | DC230 | 3G-SDI + DVI-I (Compatible with HDMI/VGA) |
SDI/HDMI: up to 1080P60Hz; VGA: UXGA Supported; |
Up to 4 Video Streams Simultaneously Decoding, 1/2/3/4 Splitting Screen and Dynamic Switching Supported |
| DC220 | 3G-SDI + DVI-I (Compatible with HDMI/VGA) |
SDI/HDMI: up to 1080P60Hz; VGA: UXGA Supported; 1920×1080 at 59.94 not supported; |
Single Video Stream Decoding | |
| 1RU-3RU | 3G-SDI + HDMI | Encoding Modules: SDI/HDMI/NDI|HX input Decoding Modules: H.265/H.264 Video Decoding, 3G-SDI+4K HDMI Dual-Port Output |
A Free Mixture of 4/8/16 Channels, Dual-Power Design |
