4CH SDI+DVI HD Video Decoding Hardware
4CH H.264 Video Decoder

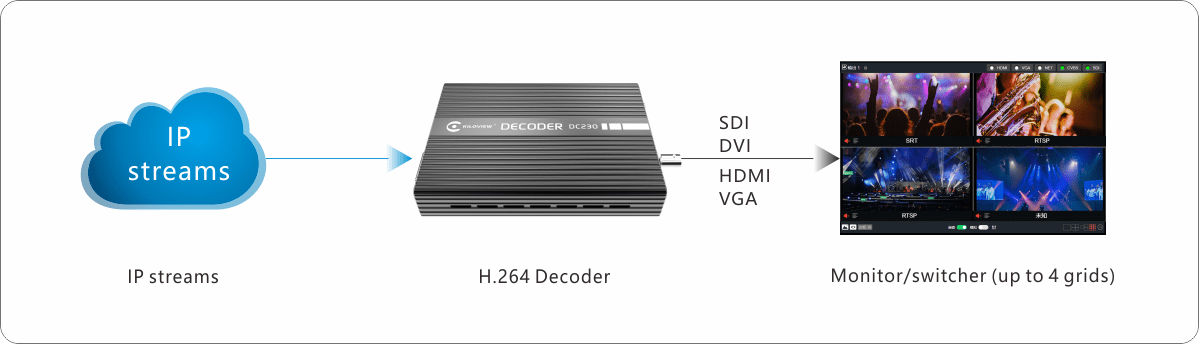

Kiloview DC230 H.264 video decoder is a professional HD audio and video decoding device with powerful functionality. It decodes from both encoder and IP camera. It accepts 4 channels of video streaming (SRT, RTSP, RTMP, or RTP) and outputs SDI/DVI-I (HDMI compatable).
4 CH Video Decoding Simultaneously
DC230 supports simultaneous decoding and output of 4 network streams, and you can select 1/2/3/4 channels of video decoding and output on the screen flexibly.
Multiple Protocols Supported
Kiloview DC230 supports decoding of SRT video stream and RTMP, HLS, TS over UDP, RTP, RTSP and other mainstream network protocols, which greatly ensures your video production experience.
Low Latency and High Quality
- Adopting intelligent delay control technology, it can achieve a decoding delay of less than 200ms;
- FPGA processing + H.264 algorithm optimization is used to resist 10% network packet loss, ensuring clear, smooth, and high color reproduction;
RTMP Server Supported
SDI+DVI(HDMI Compatible) Dual Output
SDI and DVI(HDMI compatible) output content can be either the same or not. None of a source stream and neither interface should be failed.
SDI
DVI
Free Layout of Your Output
The output display can be either a grid or in your display style such as split-screen and picture-in-picture, dynamic selection of 1/2/3/4/split display. The video bitrate and resolution can be 100% customized also.
16 Preview + 4 Output
DC230 supports “preview + output” mode, in which you can preview 16 real-time video streams on the web console, and select 4 of them to display on the screen for output simultaneously.
This feature can also be used for tally control (PVW/PGM).
Real-time Intercom
Free Overlaying Style
Kiloview DC230 benefits you from a background subject with LOGO and OSD overlay. And the preview terminal can sync the customized information.
Product Appearance
Applications
DC230 can be applied in TV programming, Lecture capture, Online courses, Distance learning, Course recording, Broadcast meetings, Web training, and so on.
Multimedia Splicing Playing
Network Program
Remote Teaching
Video Conference
Parameters
| Model | DC230 |
|---|---|
| Input | 1*100M/1000M RJ-45 adaptive Ethernet port |
| USB interface | 1*USB 2.0 Type-A |
| Video Output | 1*SDI, compatible with SD-SDI (270M), HD-SDI (1.485G),3G-SDI (2.97G); 1*DVI-I, compatible with HDMI1.4 and below/DVI 1.0/VGA |
| Output formats | SDI/DVI: up to 1080P60Hz; VGA: up to UXGA, details as below: SDI: 1080P60/59.94/50, 1080P30/29.97/25/24/23.98 1080i60/59.94/50, 720P60/59.94/50, 576i50, 480i60; HDMI/DVI: 1080P60/50, 1080P24/25/30, 1080I60/50, 720P60/50, compatible with VESA standard formats; VGA: 1080P, 720P, UXGA (1600×1200), SXGA (1280×1024), XGA (1024×768), SVGA (800×600), VGA (640×480) and other VESA formats. |
| Audio output | SDI/HDMI embedded or 3.5mm audio output |
| SDI Transmission Distance | Belden 1694A: SD SDI ≥ 350m; HD SDI ≥ 180m; 3D SDI ≥ 100m |
| Media transmission protocols | SRT/RTMP/HLS/TS over UDP/RTSP etc. protocols |
| Video decoding | H.264 |
| Audio decoding | AAC/G.711 |
| Decoding Latency | <200ms (adjustable) |
| Decoding ability | Up to 4 channels decoding simultaneous (4CH 1080P30 or 2CH 1080P60 and below） |
| Management | Web |
| Power supply/Consumption | 12V, 1A/5w |
| Operation temperature | -20℃~60℃ |
| Size | 138*105*27mm（5.43”*4.13”*1.06”） |
| Weight | 380g（13.4oz） |
| Downloads | Docs & Firmware |
