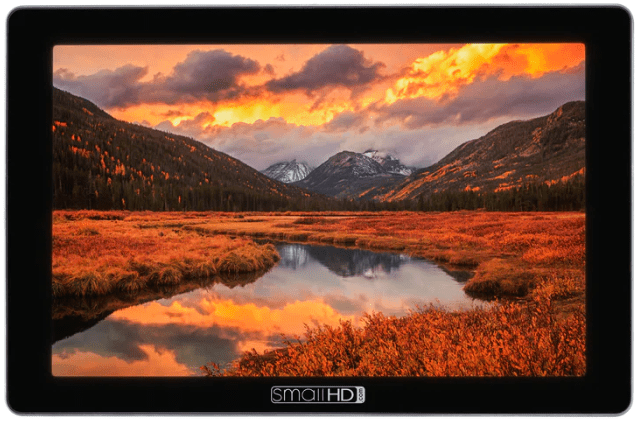

Cine 7 is the ultimate 7” on-camera HD monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, and 4K and HDR compatibility. View your production in full sunlight thanks to 1800 nits of brightness and save your favorite tools, functions, and setting pages in one tap with PageOS 4.
The Full HD 7-inch IPS LCD display with 1920×1200 resolution ensures a clear look at your production, while 10-bit color processing in 100% DCI-P3 offers color accuracy. This guarantees the image on screen reflects what’s being captured by the camera. No matter the time of day, environment, or sunlight, you’ll get a clear, glare-free view of your monitor thanks to 1800 nits of brightness.

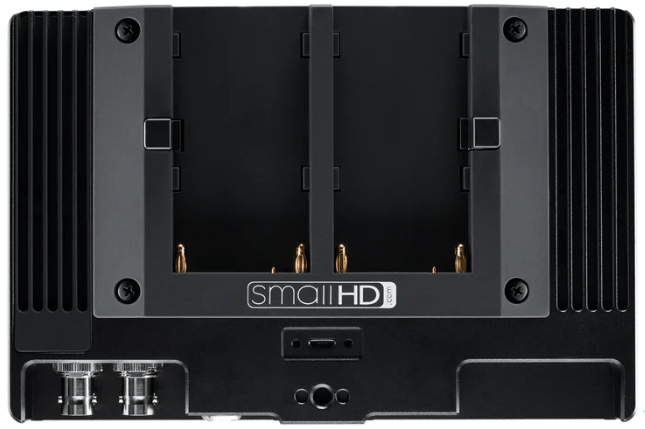

The Cine 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input with an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.
Meet Our Smart PageOS Software
With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.
Cine 7 Compatibility
The Cine 7 monitor is compatible with the Bolt RX Monitor Module. Improve your handheld monitoring workflow with this optional hardware addition to your Cine 7 monitor. Receive cable-free 4K and HDR wireless video from any Bolt 4K series transmitter at a distance of up to 750ft (228m).
Upgrade to Camera Control for RED® DSMC2® & KOMODO™* , ARRI, and Sony VENICE
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED® DSMC2®, RED® KOMODO™, ARRI, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.
Specs
SKU
- SKU: MON-CINE7
Product ID
- Product ID: 6552195432581
Environmental
- Item Weight (oz): 20
- Package Weight (oz): 32
- Height (in): 4.67
- Width (in): 1.32
- Length/Depth (in): 7.09
- Compliance: FCC, IC, CE, RoHS
- Operating Temperature: 30F to 100F
- Storage Temperature: 0F to 120F
- Mount Points: Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
- Construction: Anodized aluminum chassis
Display
- Panel Type: IPS LCD
- Diagonal Size: 7.02
- Resolution: 1920×1200
- Pixel Density: 322 ppi
- Aspect Ratio: 16:9
- Active Area: 5.95 x 3.72
- Brightness: 1800 NITs
- Contrast: 1000:1
- Gamut: 100% DCI-P3 Coverage
- Color Depth: 10-bit Processing (8-bit panel)
- Viewing Angle: 160
- Backlight Type: LED
- Adjustable Backlight: Yes
Input Signal
- 3G-SDI Input Types – YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
- HD-SDI Input Types – YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
- SD-SDI Input Types – YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
- HDMI Input Types – YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
- Audio Input Types – HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal
- 3G-SDI Output Types – YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
- HD-SDI Output Types – YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
- SD-SDI Output Types – YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
- HDMI Output Types – YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
- Audio Output Types – HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type
- SDI – 1x BNC 3G input and 1x BNC 3G selectable input/output
- HDMI – 1 input and 1 output: HDMI Type-A Receptacles (full size)
- Audio – 1x 3.5mm 3-pin Stereo Headphone Jack
- Power In – 2-pin Locking
- USB – 1x USB 2.0 Micro-B receptacle
Controls
- Primary – Touch Screen
- Record Capture – Image Capture Tool
Power
- Connector – LEMO
- Voltage – DC in – 10V minimum to 34V maximum, Battery terminals – 6.0V minimum to 16.8V max
- Power Supply – Recommend DC 12~15V at ~2.5 amp or greater
- Battery Types – L-Series, V Mount, Gold Mount
- Overload Protection – DC input: Reverse polarity
- Battery Chemistry – Li-ion
- Battery Charging Time – Monitor does not support the charging of batteries
Software
- Pixel Zoom – 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
- Frame Guides – Preset Aspect Ratios & Customizable
- DSLR Scale – Canon 5DMkii & Canon 7D
- Custom Scale – Yes (Underscan Only)
- Anamorphic De-Squeeze – 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
- Image Rotate – Automatic or Manual Control
- Image Flip – Automatic or Manual Control
- Cross Conversion – Yes: HDMI → SDI & SDI → HDMI
- Focus Assist – User Adjustable Color Style and Intensity
- Peaking – User Adjustable Intensity
- False Color – Rainbow, Arri Style, Custom with up to 10 nodes
- Zebra – Dual – User Configurable
- Waveform – Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
- Vectorscope – Yes
- RGB Parade – Fully User Customizable
- Histogram – Luma & RGB Style
- Image Capture – Yes
- Custom LUTS – Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
- LUT Downstream – Available on SDI or HDMI Out. Applied on Output Preview Page.
- LUT Import – via SD Card or USB Storage Device
- Overlay – With Opacity Slider and Blink Setting
- Audio Meters – HDMI & SDI up to 8 channel
