Descripción
Additional features of the AZOR B1 include 17 static gobos, a circular eightfold and a linear sixfold prism that are rotatable and indexable. When using as a standalone, four macros are available to freely program and can be perfectly synchronised in master-slave operation or inverted.
The spotlight also features a rapid strobe function and a quiet, temperature-controlled fan.

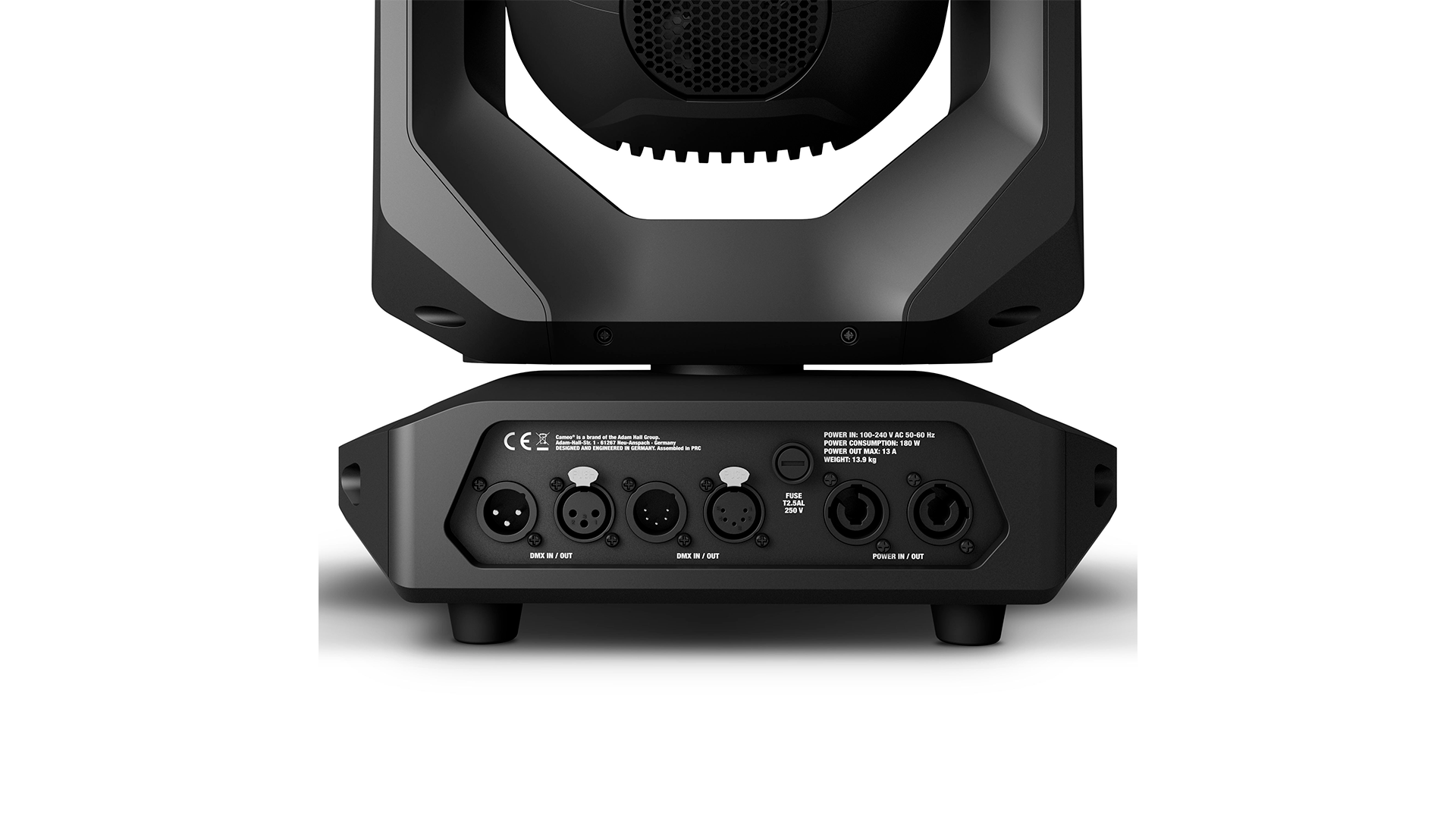

Easy configuration is facilitated by the AZOR B1’s OLED display and four buttons, 3- and 5-pin DMX inputs and outputs, while Power Twist sockets ensure unproblematic daisy chaining. The Beam Moving Head is supplied with three Omega brackets and a power cable.
Specifications
Technical Informations
- Product type: LED Moving Lights
- Type: Moving Head
- Colour spectrum: Cold white
- Number of LEDs: 1
- Color temperature: 9400 K
- LED type: 100 W
- Refresh Rate: Adjustable up to 3,600 Hz
- Dispersion: 2°
- DMX Input: XLR 3-pin male, XLR 5-pin male
- DMX Output: XLR 3-pin female, XLR 5-pin female
- DMX Mode: 13-channel, 16-channel
- DMX Functions: Colour wheel, Device Settings, Dimmer, Dimmer Fine, Focus, Gobo wheel, PAN, PAN FINE, Pan/Tilt Macros, Pan/Tilt Speed, Prism Rotation/Indexing, Prism Selection, Set Dimmer Curve, strobe, TILT, TILT FINE
- PAN Movement: 540°
- TILT Movement: 270°
- High Speed Strobe: > 20 Hz
- Standalones Modes: 4 x User Macros, Master / Slave mode, Settings
- Controls: Enter, Mode, Value Down, Value Up
- Indicators: OLED Display
- Operating Voltage: 100 V AC – 240 V AC, 50 – 60 Hz
- Power consumption: 180 W
- Power Connector: Blue & White Power Twist I/O
- Housing material: ABS plastic, Metal
- Cabinet Color: Black
- Protection class IP: IP20
- Cooling: temperature-controlled fan
- Illuminance: 180,000 lx @ 3 m
- Luminous flux: 1800 lm
- Maximum Ambient Temperature: -15 – 45 °C
- Accessories (included): 2 x omega mounting, Power supply
Dimensions
- Width: 306 mm
- Height: 437 mm
- Depth: 220 mm
- Weight: 13,9 kg
